Benefits of Thermally Broken Aluminum Windows and Doors

Benefits of Thermally Broken Aluminum Windows and Doors

It’s all about the frame!

As the most important component of any door or window, the frame of thermally broken aluminum windows is the factor that affects the energy efficiency of any installment, including that of a double-glazed thermal break aluminum window system.

Though ceiling and wall insulation does contribute in a big way to your home, building, or office, the right frame of your thermally broken aluminum windows or door helps maintain the temperature in the vicinity.

Here, we discuss how aluminum doors and windows do so.

  • Temperature Control

Aluminum is a good conductor of hot and cold temperatures, so you lose heat through the frame. To combat this, a thermal break is added to the window and door frame that makes all the difference for this style of home fittings.

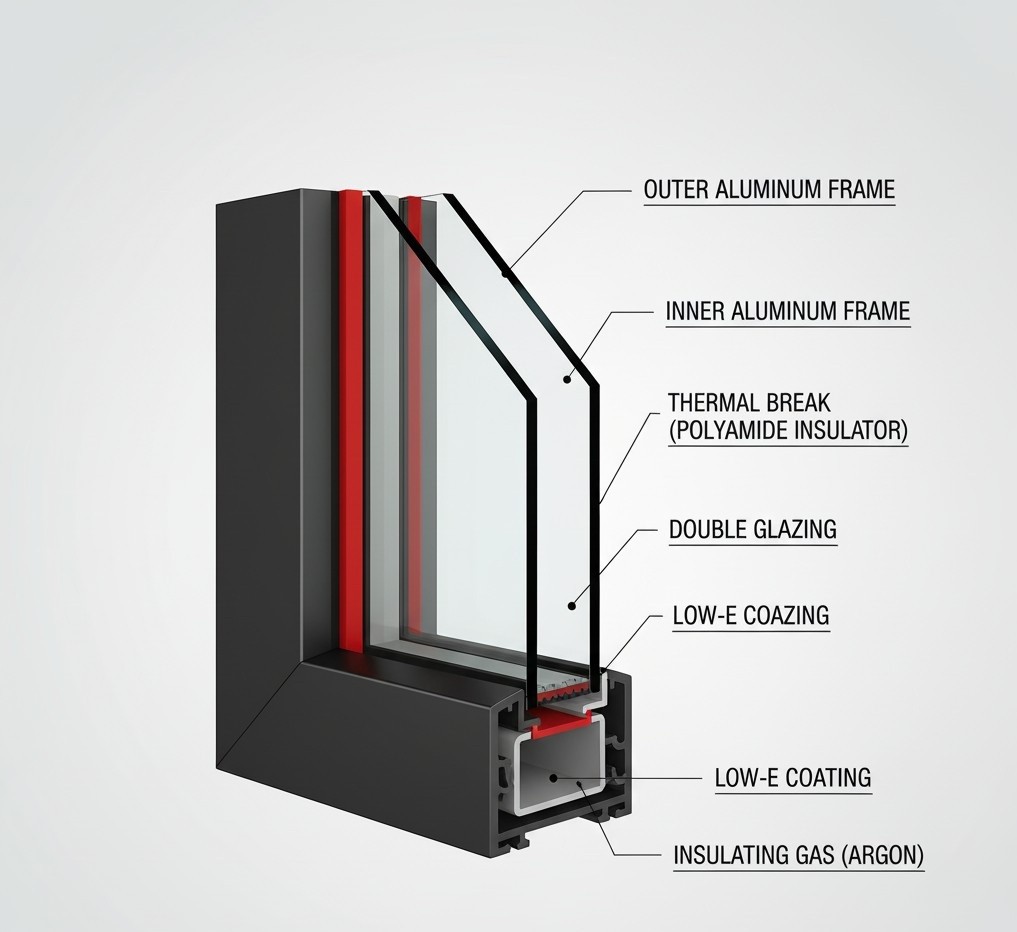

Thermal break technology consists of a reinforced polyamide bar that is placed between the inside and outside of the aluminum bar itself. This helps create an insulated barrier inside the window frame. And that helps the frame conduct hot and cold temperatures as well as the noise at a much slower rate than normal aluminum.

  • Thermal Performance

Thermal windows and doors offer a better solution through their thermal conductivity regarding energy efficiency. By pairing aluminum windows with thermal breaks with multiple panes of glass, you get a window that is not only long-lasting and durable but also energy efficient since it meets the stringent building codes that are required for each fitting.

  • Low Cost of Ownership

This is perhaps the most important factor for homeowners. When it comes to patio doors and windows, we need options that have a long lifespan. You have choices like vinyl, wood, and steel.

However, aluminum has a lifespan of more than 20 years. By pairing that with the durability factor and the inherent strength of the windows and doors, we have a product that easily outperforms other materials in the market.

  • Versatility

There aren’t many building materials that offer the same versatility as aluminum. From modern styles to Victorian traditional to minimalist designs, aluminum windows can be bought in numerous styles, including casement, sliding, tilt, turn, and louver types. Thermally broken aluminum windows complement almost every design in architecture.

  • Waterproof

The aluminum doors and windows have a thermal break, and they also have a waterproof feature. The drainage system was constructed according to the concept of pressure balancing, and the slope of the inclined design was stepped. Also, the drainage port was supplied, the drainage was smooth, and the water tightness was excellent.

  • Condensation

Aluminum doors and windows with thermal breaks prevent moisture from forming.

The broken aluminum profile of the bridge can realize the three-way sealing structure of the door and window, adequately separate the water vapor chamber, and successfully achieve the pressure balance of gas and water. This results in a significant improvement in the water tightness and air tightness of the door and window.

  • Anti-Mosquito

Design of an anti-mosquito thermal break screen that may be installed in aluminum doors and windows. Invisible screens, which may be erected inside and outdoors, are equipped with anti-mosquito and anti-fly technology and are particularly well suited for the large number of mosquitoes found in the north.

  • Maintenance

Aluminum doors and windows with thermal breaks are not only very durable but also need no maintenance. High tensile and shear strength and resistance to heat deformation are the aluminum structure’s characteristics that make up the thermal break.

It is dependable and long-lasting. The fractured aluminum profile is resistant to assault by acids and alkalis. It does not turn yellow or fade readily and requires very little maintenance. This makes it an excellent choice for outside use.

  • Environment Friendly

Doors and windows made of thermally broken aluminum are environmentally friendly construction materials.

The creation of the aluminum doors and windows that make up the Thermal break will not only result in the production of dangerous materials but also the production of fully recyclable and reusable materials. It is an environmentally friendly product that may be used as a green construction material.

What Is “Thermal Break”?

It is referred to as a thermal break when a material with low thermal conductivity is positioned in an assembly to reduce or prevent the conduction of thermal energy from the inside to the outside of a building or vice versa.

This can be accomplished by positioning the material with low overall thermal conductivity. Thermal breaks provide a continuous barrier between the inside of the window frames and the outside of the building.

In addition to the walls, the thermal breaks make up a significant portion of the window structure of a home or other building that might benefit from improved insulation. The thermal breaks, also known as thermal barriers, ensure that the metal window sash frames on the inside and exterior are properly fastened.

What does it do?

Controlling the various modes of heat transmission is how thermally broken windows increase the energy efficiency of a building. There are three different ways that heat, also known as thermal heat energy, may be transported through a material:

The heat transmission process that occurs when two or more objects come into physical contact is called conduction.

The transport of heat energy from one location to another using gaseous or liquid convection.

Radiation transmits thermal energy across a greater distance by electromagnetic waves with a high frequency, such as visible light, ultraviolet light, or microwaves.

The thermally fractured construction of window frames provides insulation against energy transfer. To accomplish this, a substance that lowers the amount of heat or cold conveyed through the frames is placed between the metal components on the outside and the metal sections on the interior of the frames. The term “thermal break” refers to this particular component.

A thermal break is a non-metallic resin or plastic substance inserted in a metal window frame that physically separates the inner section of the window from the external part.

Thermal breaks are also known as thermal bridging. As a result, the route that heat energy may take to be transmitted or passed through the window frame has been “thermally fractured.”

Buying Thermally Broken Aluminum Windows and Doors

Thermally broken windows and doors are the best choice for homeowners seeking energy efficient options that offer strength and durability.

Oridow offers such products for home and commercial projects. All you need to do is contact us, provide us with the details, and we’ll do our best to make sure you get the windows and doors you need at the best price!



Aluminium windows & doors, uPVC windows & doors from China
