Finding the right size and configuration for a fold-up window isn’t just about measurements; it’s about compatibility with your space, functionality, and how effortlessly the window integrates into your lifestyle. The ideal fold-up window size balances structural support, sash proportion, opening clearance, and usability while still maintaining proper weather sealing and smooth lift operation.
In simple terms: the perfect fit is determined by opening dimensions, frame depth, hardware load capacity, and how you plan to use the space on both sides of the window. Let’s break this down in a way that aligns with real-world installation scenarios.

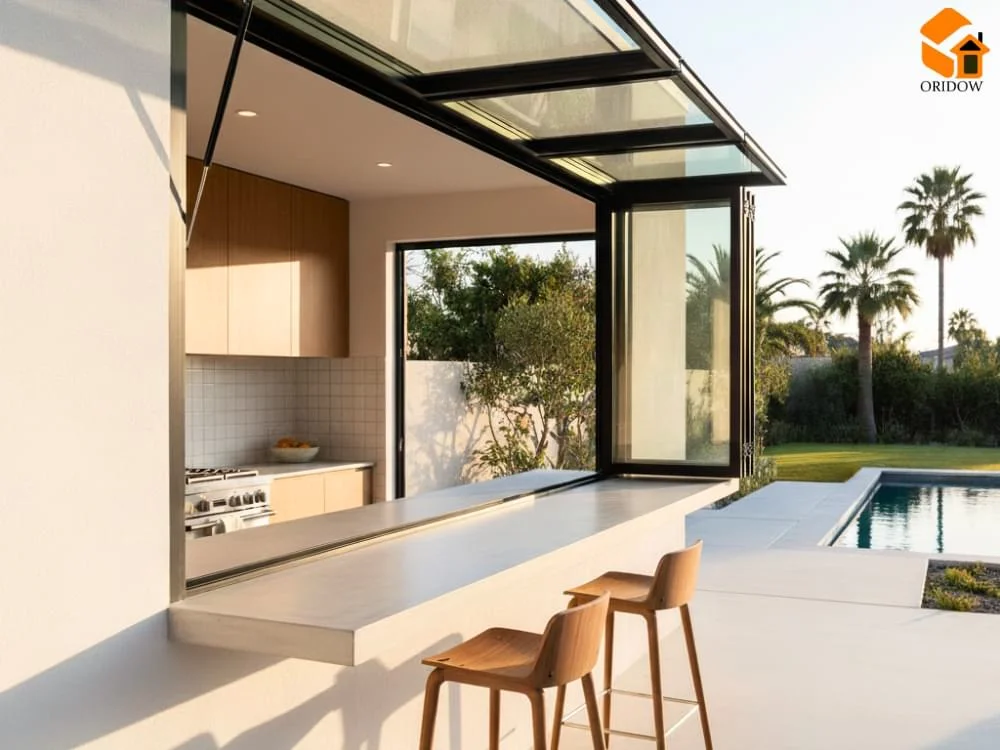

The Ideal Size for a Fold-Up Window in Kitchens, Patios, and Bars.
Different spaces need different window dimensions because of counter heights, exterior platforms, and traffic flow. Start by thinking about how the window will be used rather than deciding a measurement first.
Common Size Ranges
| Location | Optimal Width | Optimal Height | Why It Works |
| Kitchen pass-through | 48–72 in | 30–42 in | Matches counter height, avoids obstruction |
| Patio or deck opening | 60–108 in | 36–60 in | Wider opening for serving + airflow |
| Interior bar or café | 36–60 in | 24–36 in | Smaller footprint, fast operation |
| Large panoramic views | 108–144+ in | 48–72 in | Wide span + structural reinforcement |
Key Considerations When Sizing
- Align the sill with countertop height (36 in standard).
- Leave clearance for stools, backsplash, or bar rails.
- Confirm header structural support for wider spans.
- Ensure smooth lift mechanics (heavier sashes need stronger hinges and counterbalance systems).
If you’re still early in planning, comparing available window options can help match size to frame style.
How Do You Measure a Rough Opening for a Fold-Up Window?
Accurate measuring prevents air gaps, misalignment, and binding during lift operation. Even small discrepancies create long-term strain.
Step-by-Step Measurement Checklist
- Measure width at top, mid, and bottom; record the smallest number.
- Measure height at left, center, and right; use the smallest number.
- Deduct ¼–½ inch per side for shim spacing.
- Confirm opening is square with diagonal corner measurements.
- Match frame depth to wall thickness.
Pro Tips for Precision
- Measure from finished countertop surface, not sub-top.
- Account for exterior trim and drip caps.
- Choose adjustable frames if walls are uneven.
To keep operation smooth over time, a quick look at maintenance tips can reduce hinge friction and seal wear.
Which Configuration Works Best for Your Space? (Single-Lift vs. Multi-Panel)
Fold-up windows come in several panel styles, each suited to different opening widths and usage patterns. Picking the wrong configuration can limit airflow, obstruct seating, or overload the frame.
Most Common Configurations
Single-panel lift
Best for:
- Small pass-throughs
- Low-traffic openings
- Simple installation
Benefits:
- Fewer moving parts
- Cleaner sightlines
- Cost-effective hardware
Multi-panel vertical bi-fold
Best for:
- Wide entertainment areas
- Panoramic openings
- High-traffic serving windows
Benefits:
- Maximizes open area
- Distributes load across panels
- Flexible ventilation (partial opening)
Split-lift (half-up, half-stationary)
Best for:
- Spaces needing airflow without full access
- Rooms with overhead obstructions
- Outdoor-facing offices or kiosks
Benefits:
- Partial lift = controlled breeze
- Lower energy escape
- Reduced operating force
How Do Window Size and Configuration Affect Cost?
Bigger isn’t always more expensive complexity drives pricing more than raw dimensions.
What Increases Cost
- Multi-panel lift systems
- Custom glazing thickness
- Reinforced frames for large spans
- Weather-rated hardware for exterior installs
What Keeps Costs Lower
- Standard height openings
- Single-lift designs
- Aluminum frames vs. wood-clad systems
- Fixed lower panels with lifting upper sash
If you’re comparing material vs. size, reviewing cost considerations can help estimate budget more accurately.
How to Ensure Proper Function Over Time?
Even perfectly sized windows lose performance if load pressure shifts over time. Proper maintenance protects the hinges, sash, and frame alignment.
Best Long-Term Practices
- Clean tracks and seals monthly.
- Lubricate lift hardware yearly.
- Inspect weatherstripping after seasonal temperature shifts.
- Re-balance lift assist if the sash feels heavier over time.
A full upkeep breakdown can be found through the linked maintenance tips earlier in this guide.
Choosing the Right Materials for Your Window Size
Material impacts durability, insulation, and structural compatibility with wider spans. A large panoramic opening often demands stronger engineering.
| Material | Best For | Advantages | Considerations |
| Aluminum | Long spans, exterior use | Lightweight + rigid | Conductive (add thermal breaks) |
| Wood-clad | Aesthetic indoor spaces | Warm finish | Needs refinishing |
| uPVC | Smaller openings, budget installs | Low maintenance | Less rigid at wide spans |
| Hybrid | Coastal + commercial | Strength + insulation | Higher cost |
Larger spans often require aluminum or hybrid frames for rigidity under lift load.
How to Pair Window Size With Structural Requirements?
A window is only as strong as the opening that supports it. If you’re enlarging an opening, confirm structural reinforcement first.
What to Check Before Ordering
- Header size and load rating
- Exterior wall type (block, stud, concrete)
- Weather exposure: wind, salt, humidity
- Weight of glazing and hardware
When to Upgrade Structure
- Openings wider than 96 inches
- Multi-floor load transfer walls
- Installations under roof overhangs where wind compresses inward
When Should You Choose Custom Instead of Standard Sizes?
Customization makes sense when architectural context demands precise alignment rather than forcing a space to adapt to the hardware.
Choose Custom Sizing If:
- You have a historic property with irregular wall depths
- The opening integrates with built-in cabinetry or tile
- The window is part of a commercial service counter
- You want glass alignment with nearby transoms or door mullions
Benefits of Custom Builds
- Perfect fit = better seals
- Cleaner interior lines
- Tailored operating force
- Higher property value
If dimensions feel complex, reaching out for expert assistance ensures compatibility before ordering.
Why Choose Oridow as Your Fold-Up Window Supplier?
Selecting a supplier is often the final step after sizing and layout decisions. Oridow stands out for its ability to support both standard and oversized openings while ensuring smooth lift operation and structural stability.
Wide Range of Size Options for Different Installations
| Series | Wall Thickness | Profile Width | Max Recommended Size |
| 55 Series | 1.1–2.0 mm | 55 mm | Width ≤ 3000 mm, Height ≤ 2000 mm |
| 60 Series | 1.2–3.0 mm | 60 mm | Width ≤ 3300 mm, Height ≤ 2000 mm |
| 60-2 Heavy Series | 2.0–3.0 mm | 60 mm | Width ≤ 3500 mm, Height ≤ 3000 mm |
| 100 Series (Manual/Electrical Integrated) | 2.0–3.0 mm | 100 mm | Width ≤ 3500 mm, Height ≤ 3000 mm |
| 138 Series (Electrical) | 2.0–3.0 mm | 138 mm | Width ≤ 3500 mm, Height ≤ 3000 mm |
This gives homeowners and commercial installers the ability to size windows based on load demands, not generic hardware limits.
Patented Lift System for Effortless Operation
Oridow’s dedicated lift mechanism is engineered to reduce operating force and support heavy panels:
- High-precision aluminum alloy
- Heat and corrosion resistance
- Configured lift force based on window height
- Works with compact motors or light manual force
This ensures smooth movement even with multi-panel, large-format installations.
Built for Long-Term Durability
Rather than standard aluminum, the profiles are engineered for:
- Structural rigidity under repeated use
- High load capacity on wide spans
- Corrosion resistance in exterior applications
- Consistent lift performance over time
Designed for Real-World Residential & Commercial Applications
These systems are useful for:
- Patios, decks, and outdoor kitchens
- Hospitality & bar service counters
- Open-concept dining and entertainment spaces
- Homes needing ventilation + open views
Final Thoughts
Choosing the right size for your fold-up window comes down to use case, structural capacity, and comfort in the surrounding space. When you pair dimensions with the right configuration, you get a smoother lift, better airflow, and a window that doesn’t fight your layout.
Take your time measuring, think about how you’ll use the opening daily, and choose materials and hardware built for long-term performance.
FAQ
How much space do I need above a fold-up window?
Most systems need 6–12 inches of vertical clearance for hinges and lift mechanisms. Larger spans may need up to 18 inches.
Can fold-up windows be installed without a countertop?
Yes, they can open directly into patios, dining rooms, or outdoor seating areas without a counter.
Are fold-up windows weather-sealed?
Exterior-ready models use compression seals, insulated glazing, and drainage channels to prevent leakage.
Do large fold-up windows require permits?
Permits may be required if modifying structural walls, widening openings, or installing commercial service windows.
